RFID Reader

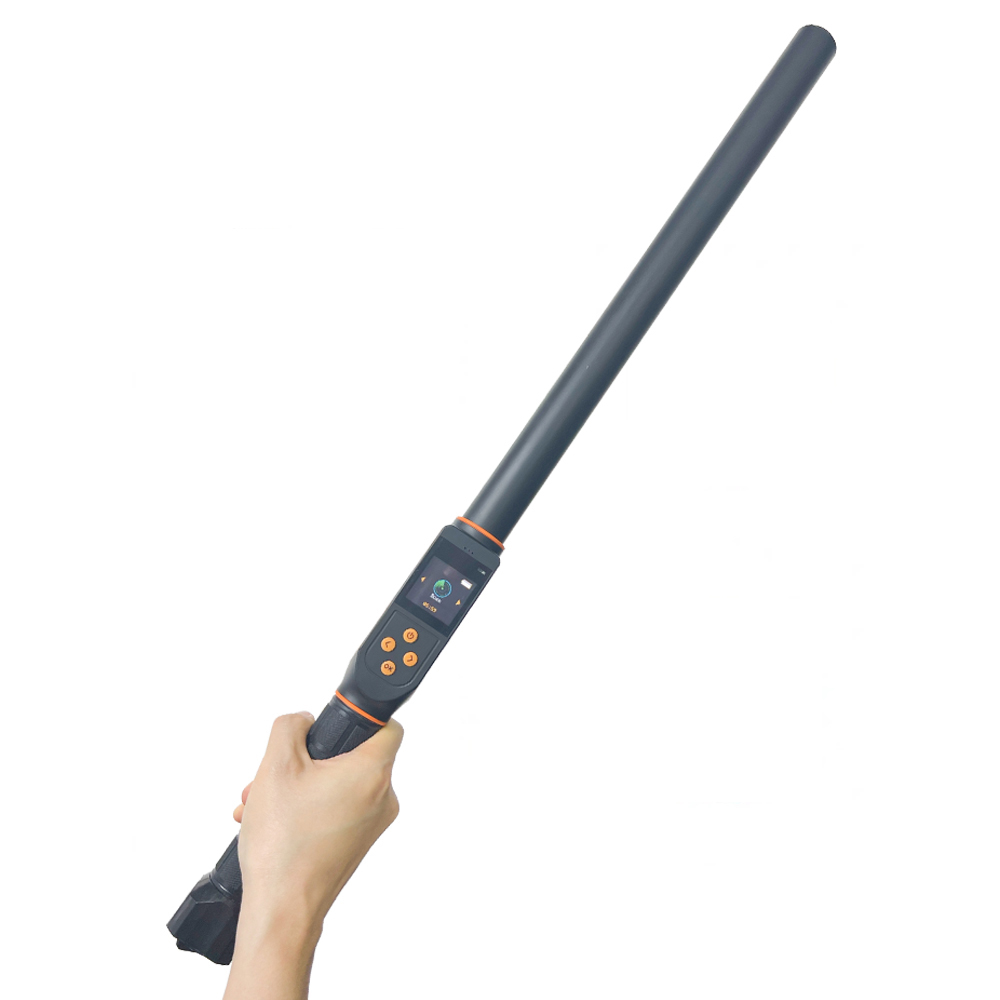

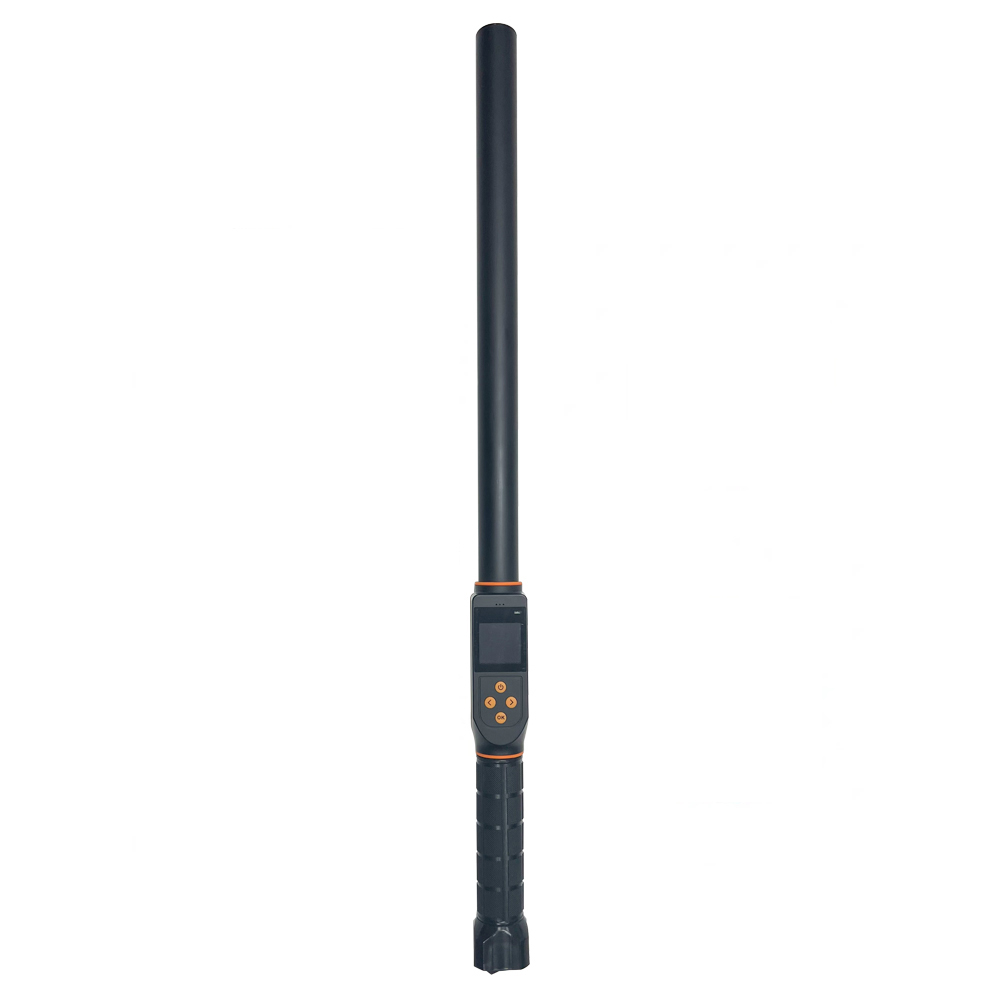

CT-002-R Eartrace Stick Reader

Frequency: 134.2KHz
Protocol: ISO11784/5 FDX-A, FDX-B, EM4102, HDX
Reading range: Up to 20 cm（12mm×2mm, glass tag)
Compliance certifications: FCC, CE
Product description: CT-002-R "petSCAN" reader can read all FDX-B type electronic chips (complying with standard ISO 11784), FDX A chips and HDX chips.
INQUIRY

CT-002-R Stick Reader for Animal Identification

1.It is applied to livestock, pet and asset identification.

2.CT-002-R is a stick reader which can read FDX-B, FECAVA FDX-A and HDX chips.

3.Complying with ISO11784/5 and ISO14223 standards.

4.More extensive reading range, beyond 8cm to read glass tag.

5.Seven languages supported (English, French, Spanish, Italian, Portuguese, German, Polish).

6.After reading some RFID tags, it can display the ID numbers and phone number while storing data.

7.User can transmit the information to the PC automatically through USB or Bluetooth.

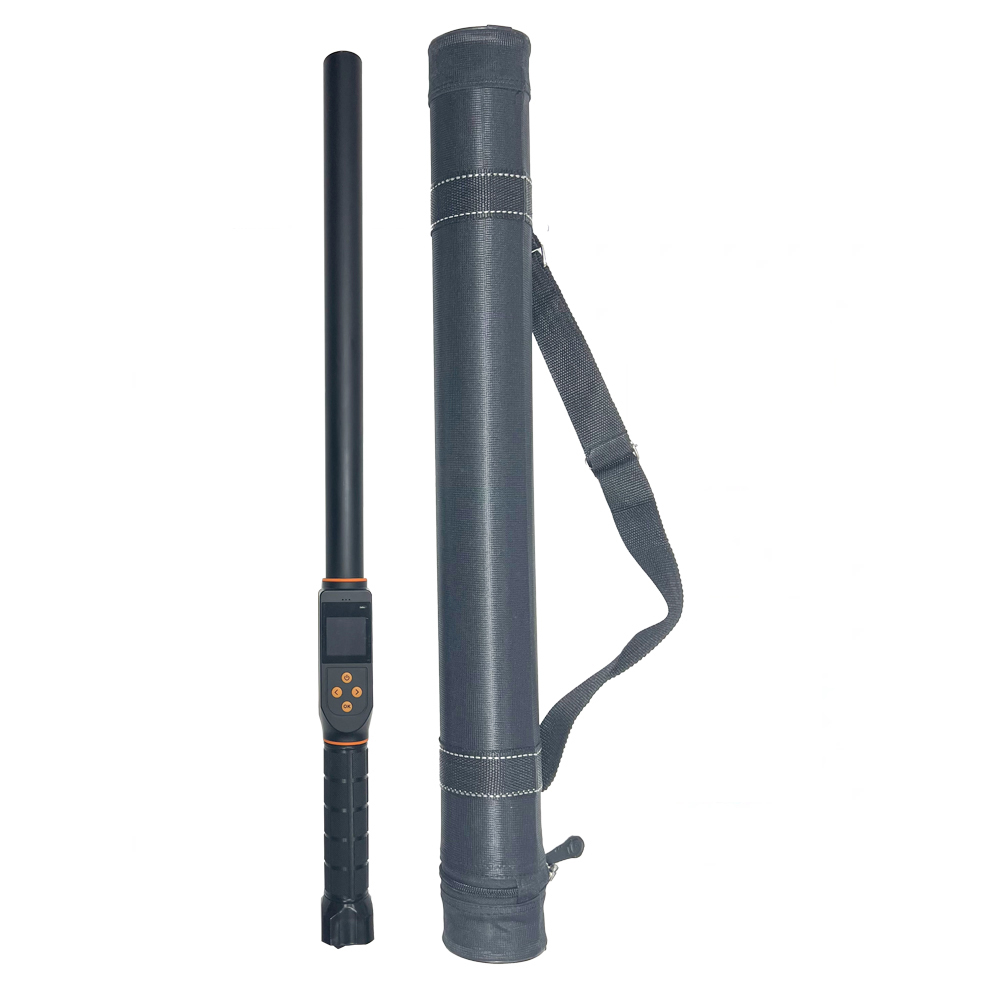

8.Includes a handheld (rechargeable lithium battery), USB data cable.

SPECIFICATIONS:

Model	CT-002-R
Parameter	Frequency: 134.2kHz Reading Standard: ISO11784/5 FDX-A, FDX-B,HDX and EM4102 Data Storage：Up to 1 million IS0 animal IDs record Communication Mode：USB and Bluetooth Reading Distance：27mm circular inlay: 45cm 12mm glass tag: 20cm

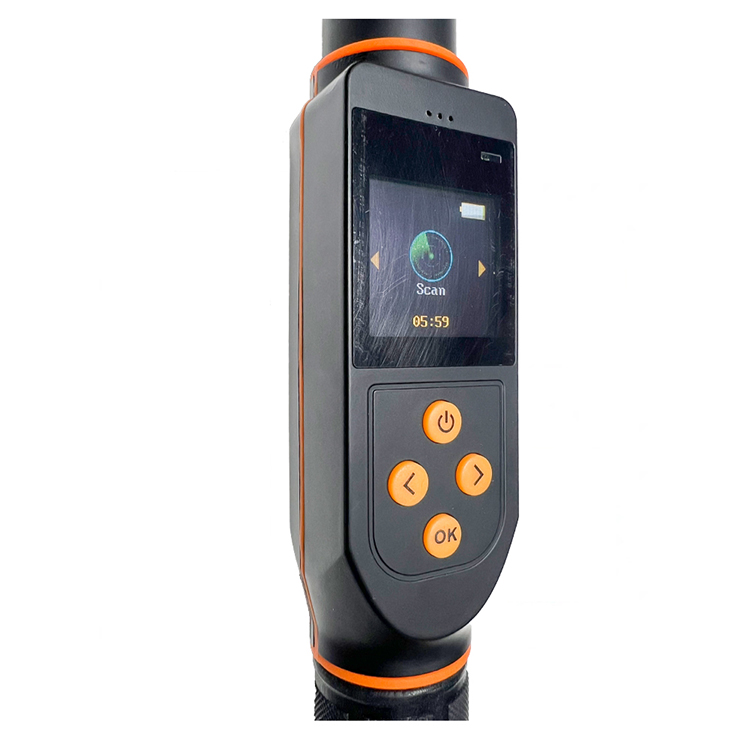

Screen	Size: Color screen 1.7 inch. 8 lines display
Working Conditions	Operation Temperature: -5°C-40°C Continuous Working Time: 12 hours
Dimensions & Weight	Product Size ：650 x 65 x 48 mm , 485g
Term of Service	1 year
Power Supply	rechargeable lithium battery, 2600mAh
