Product Introduction:

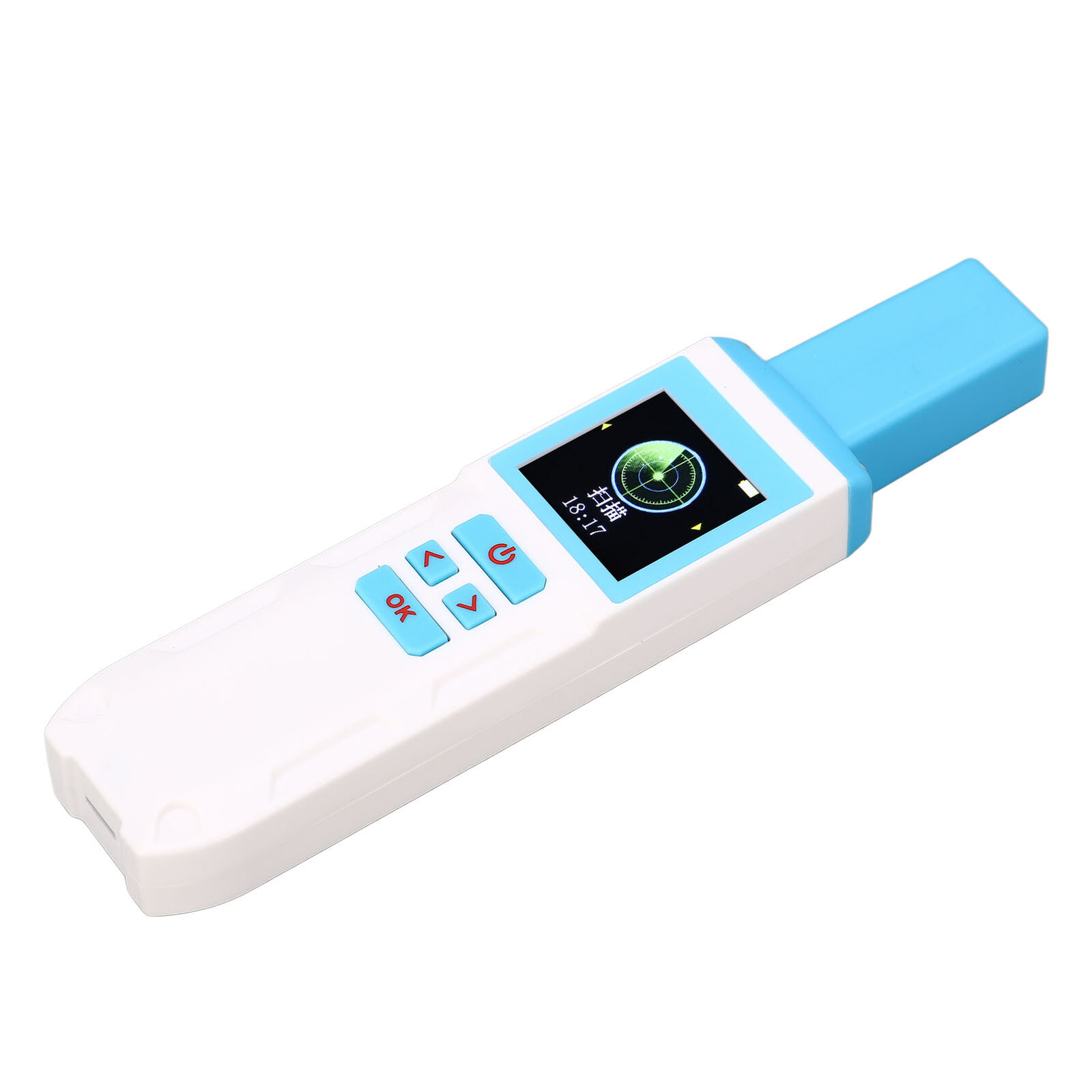

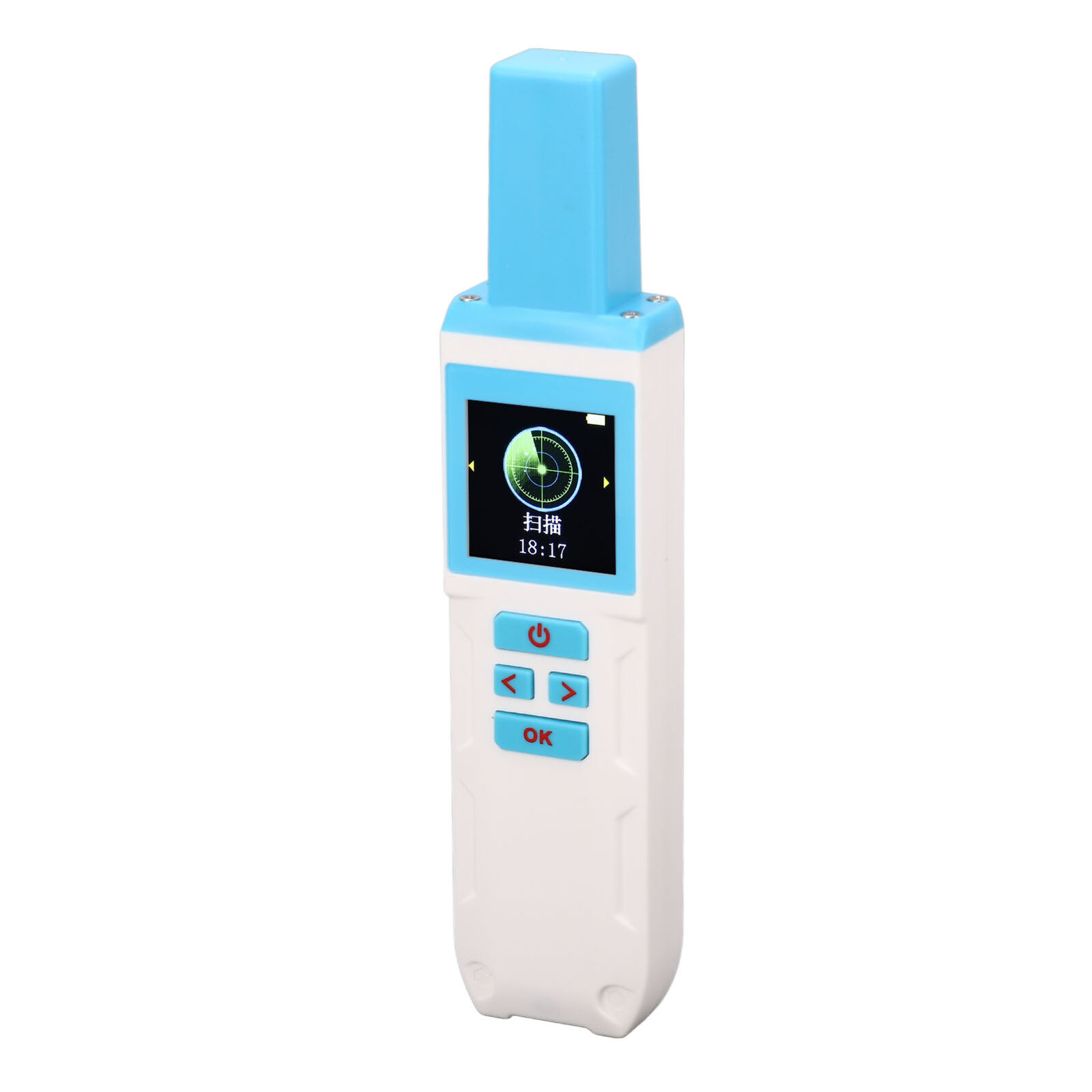

The CT003 is a handheld microchip reader and writer. It uses the radio frequency identification technology, and supports FDX-B (which compitible with the ISO 11784/85 standard), FDX-A, HDX format microchip transponder.

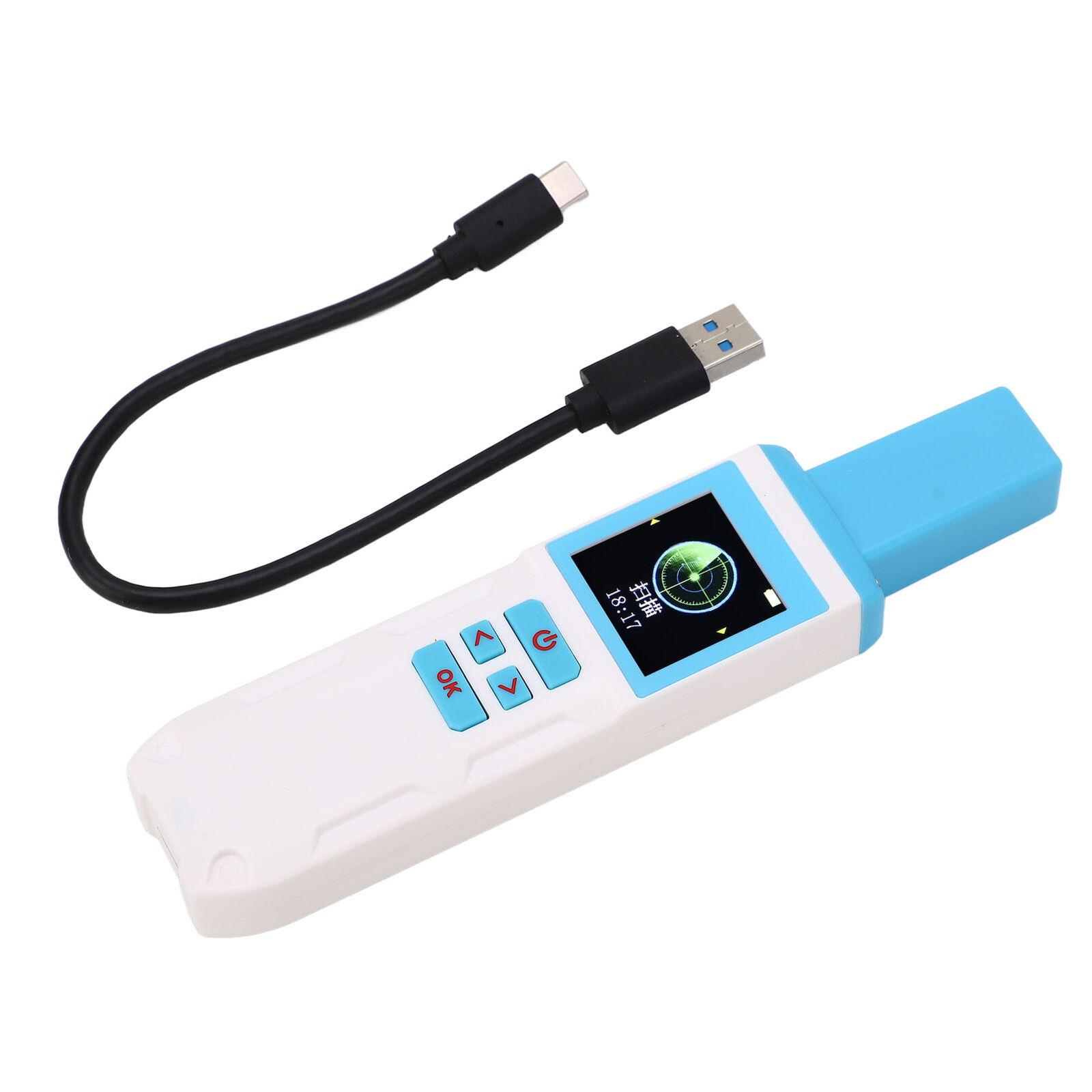

The microchip scanner uses a 1.5-inch color display, which is clearly displayed both indoors and outdoors. it is convenient to connect to the mobile phone wirelessly via Bluetooth, and can be controlled by mobile phone APP. It can also connect to the PC via usb cable for the data transmission. The performance of the scanner is stable, simple operation, suitable for animal husbandry, urban community security, and public security inspections.
|
Frequency |
134.2Khz |
|
Support Standards |
FDX-B (ISO 11784/85 Standard)，FDX-A，HDX |
|
Reading Range |
HDX 27mm Ear tag = max 28 cm FDX-B 27mm Ear tag = max 25cm FDX-B 2.12x12mm glass tag = max 15cm FDX-A 2.12x12mm glass tag = 6cm |
|
Reading time |
<1s |
|
Display |
1.5-inch Color Display |
|
Indication |
Buzzer |
|
Battery |
Built-in 3.7V @ 1500mA lithium battery |
|
Power Consumption |
Maximum operating current: 400mA |
|
Memory Capacity |
30,000 scanned tag memory (includes ID+ time) |
|
Reading time |
USB, Bluetooth 4.0 |
|
Standby Time |
16 hours of continuous use |
|
Language |
English/Chinese |
|
Weight |
105g |
|
Dimension |
167x37x20mm |
|
Protection/Resistance |
IP54 Protection / 1.5-meter drop test. |
|
Working Temperature |
-20～80℃ |
|
Certifications |
CE, FCC, RoHS |
