RFID Reader

RT100-V8BT Handheld Reader

Frequency: 134.2KHz
Protocol: ISO11784/5 FDX-A, FDX-B, EM4102, HDX
Reading range: Up to 11 cm（12mm×2mm, glass tag)
Compliance certifications: FCC, CE
Product description: The RT100 V8 "petSCAN" reader can read all FDX-B type electronic chips (complying with standard ISO 11784), FDX A chips and HDX chips.
INQUIRY

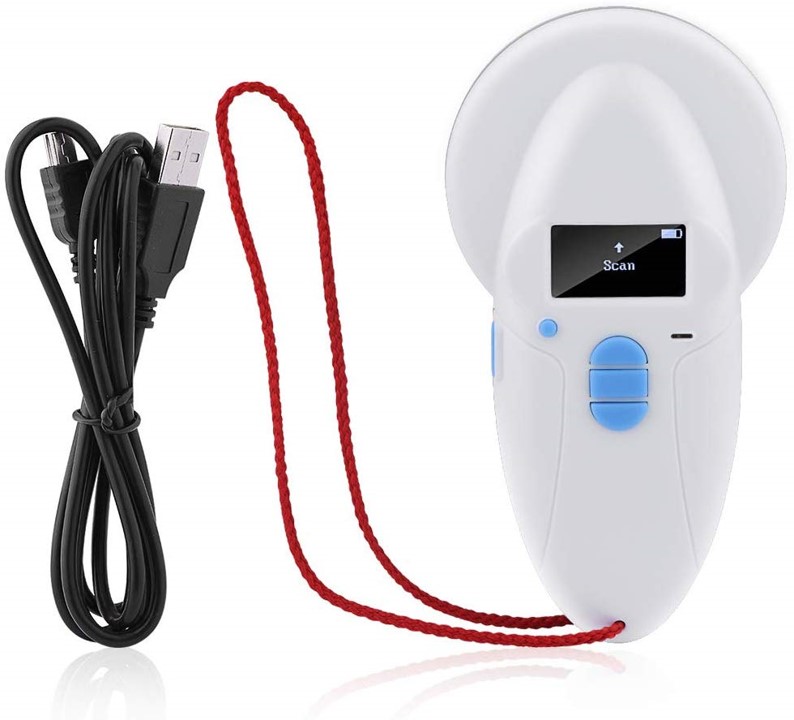

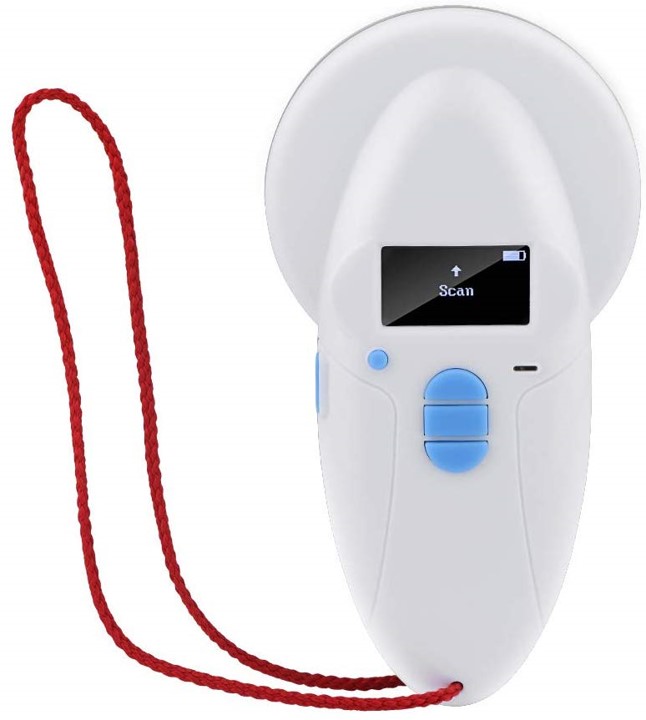

RT100-V8BT Handheld Reader for Animal Identification

1.It is applied to livestock, pet and asset identification.

2.RT100-V8BT is a handheld reader which can read FDX-B, FECAVA FDX-A and HDX chips.

3.Complying with ISO11784/5 and ISO14223 standards.

4.More extensive reading range, beyond 8cm to read glass tag.

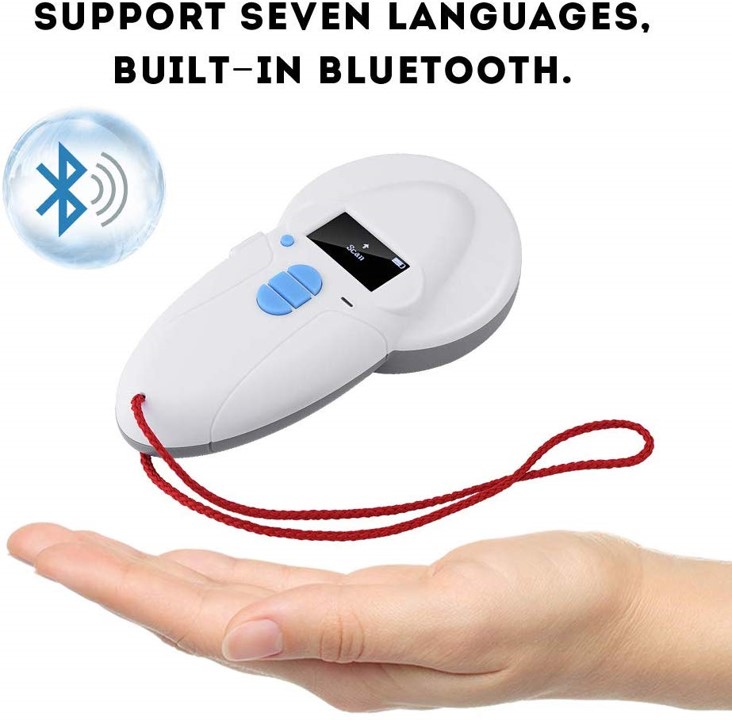

5.Seven languages supported (English, French, Spanish, Italian, Portuguese, German, Polish).

6.After reading some RFID tags, it can display the ID numbers and phone number while storing data.

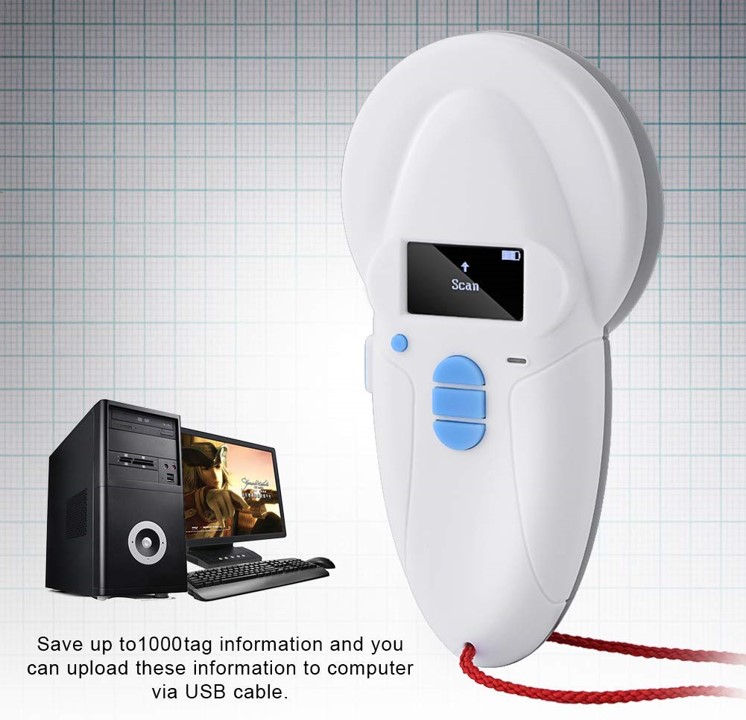

7.User can transmit the information to the PC automatically through USB or Bluetooth.

8.Includes a handheld (rechargeable lithium battery), USB data cable.

SPECIFICATIONS:

Model	RT100-V8BT
Parameter	Frequency: 134.2kHz Reading Standard: ISO11784/5 FDX-A, FDX-B,HDX and EM4102 Data Storage：1000 records Communication Mode：USB and Bluetooth Reading Distance：27mm circular inlay: 16cm 12mm glass tag: 10cm

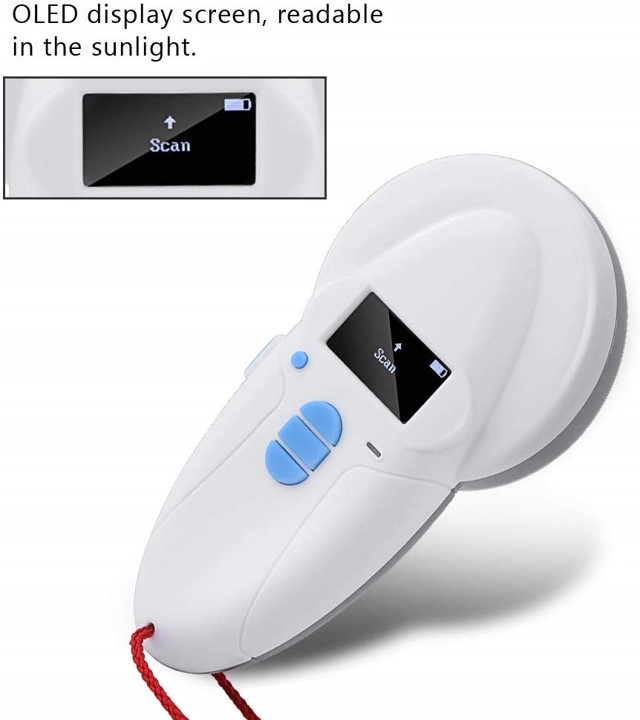

Screen	Size: 128*64OLED
Working Conditions	Operation Temperature: -5°C-40°C Continuous Working Time: 12 hours
Dimensions & Weight	Product Size ：1568530mm, 127.5g Package Size：17010050mm, 189g
Term of Service	1 year
Power Supply	rechargeable lithium battery, 1400mAh, 3.7V
