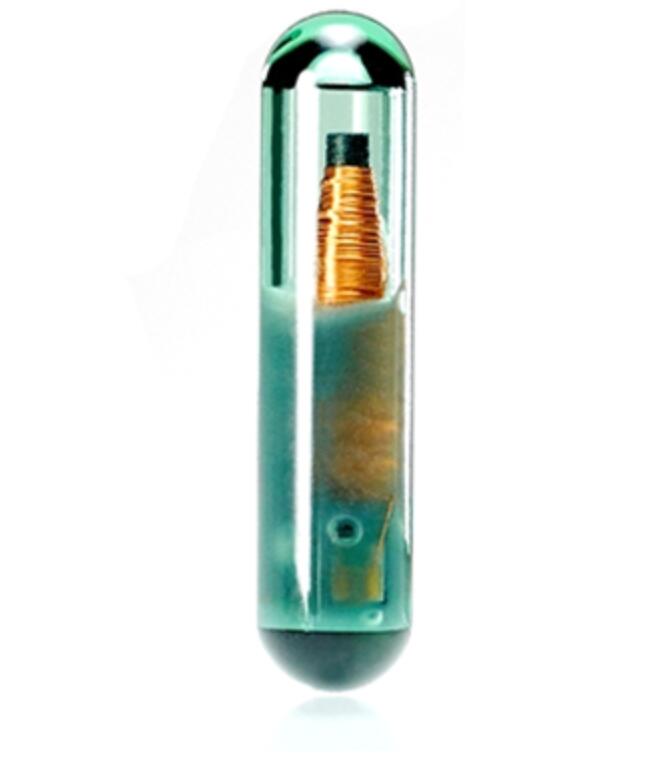

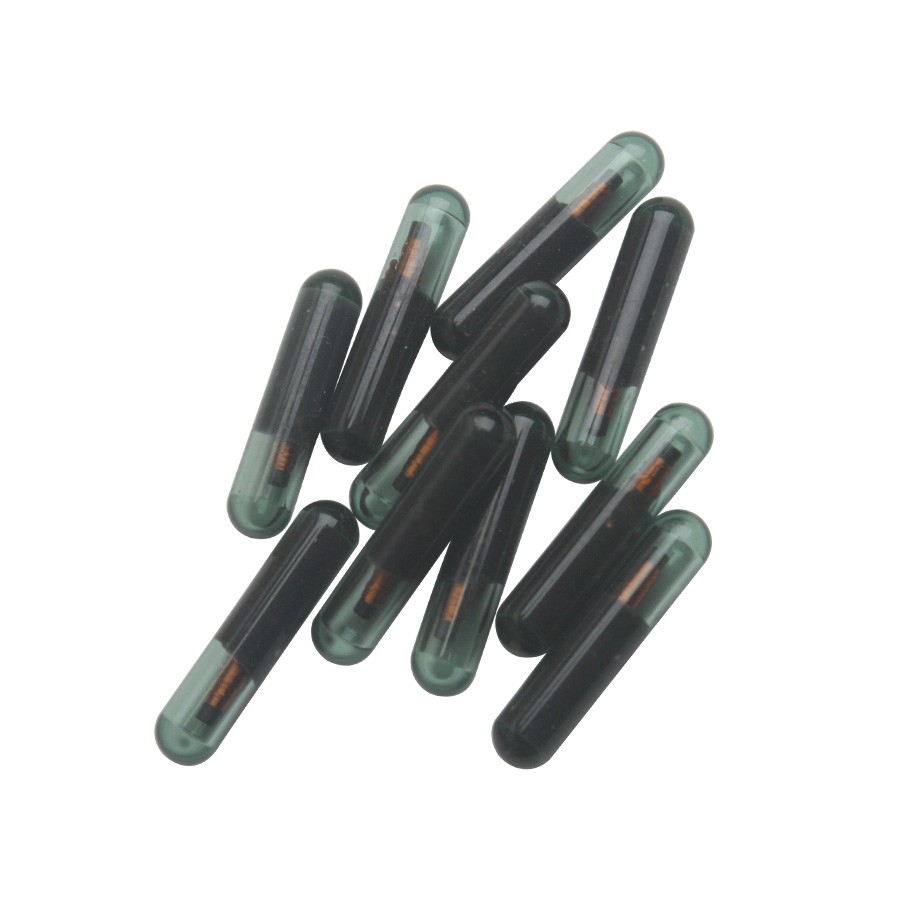

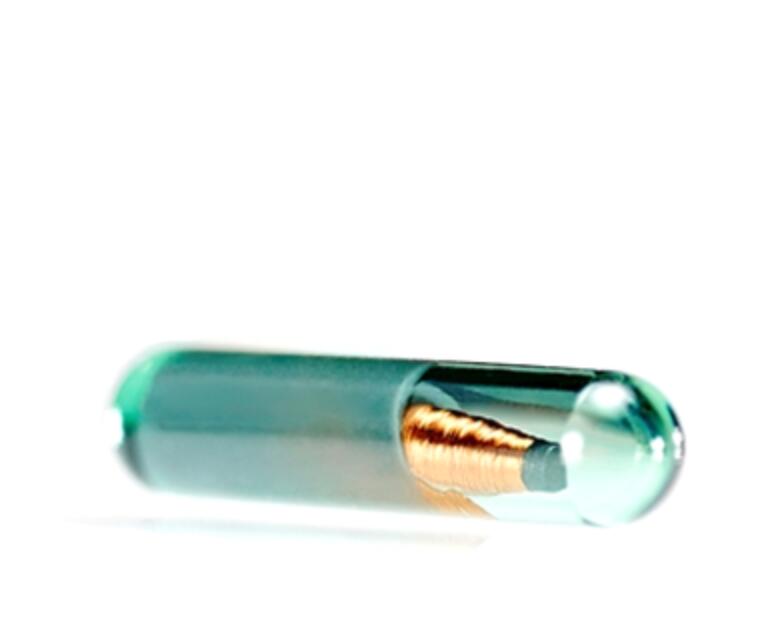

GLASS TAG for Animal Identification

Overview

Operating Frequency

134.2 kHz +/-3 kHz

125.0 / 128.0 kHz ± 3 kHz

Material

Biocompatible glass

Options

Programming of customized data

Parylene C coating

Supply with sterilized syringes

Operating Temperature

-25°C to +85°C

Transponder Baud Rates

f(RF)/64, f(RF)/32, f(RF)/16, f(RF)/8

Transponder Coding Types

Manchester

Biphase

ASK

PSK

International Standards

ISO11784/85

FDX-A

FDX-B

HDX

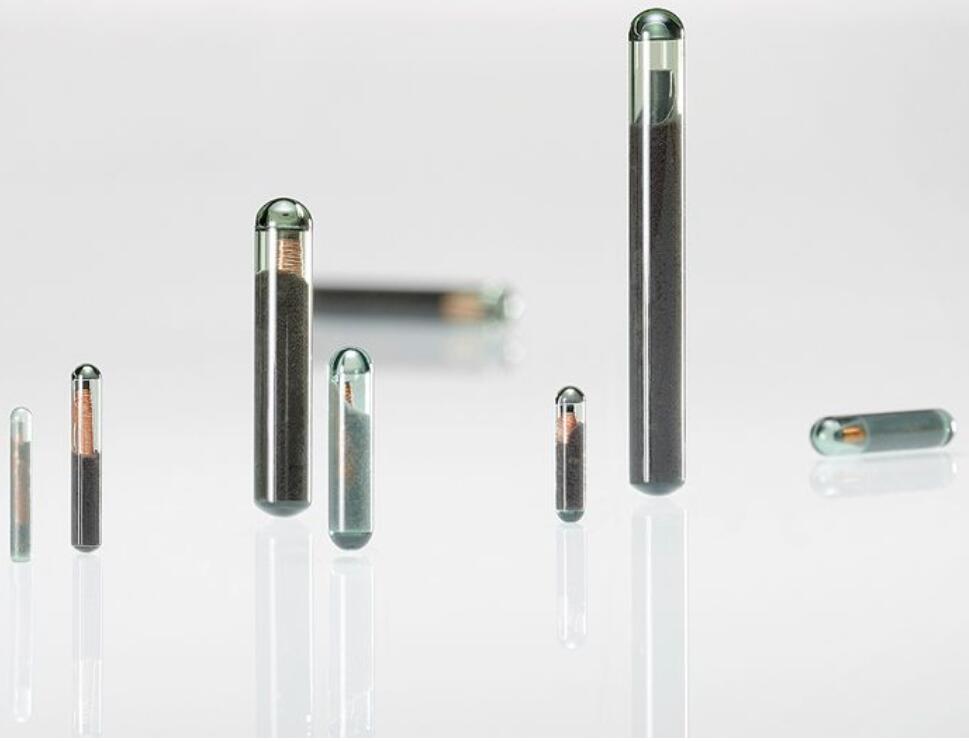

Dimensions

Frequency

Package

Available IC

Ø 1.25 x 8.3 mm

134.2 kHz

1,000 per bag

EM 4305 OTP

Ø 1.41 x 8.3 mm

128.0 kHz

134.2 kHz

1,000 per bag

2,000 per bag

EM 4305 OTP

EM 4305 OTP

Ø 2.12 x 12.0 mm

125.0 kHz

134.2 kHz

2,500 per bag

2,500 per bag

1,000 per bag

1,000 per bag

1,000 per bag

Atmel ATA5575 OTP

Atmel ATA5575 OTP

EM 4305 OTP

NXP HTS256 OTP

NXP HTS2048 OTP

Ø 3.15 x 13.3 mm

128.0 kHz

134.2 kHz

1,000 per bag

1,000 per bag

EM 4305 OTP

EM 4305 OTP

Ø 3.85 x 23.0 mm

134.2 kHz

1,000 per bag

1,000 per bag

EM 4305 OTP

SIC7999 HDX

Ø 3.85 x 32.0 mm

134.2 kHz

1,000 per bag

1,000 per bag

EM 4305 OTP

SIC 7999 HDX

Fields of Applications

Pet Identification

Pigeon race

Livestock Identification

(bolus+ ear tag)

Fish Identification

Identification of laboratory animals (mice)
